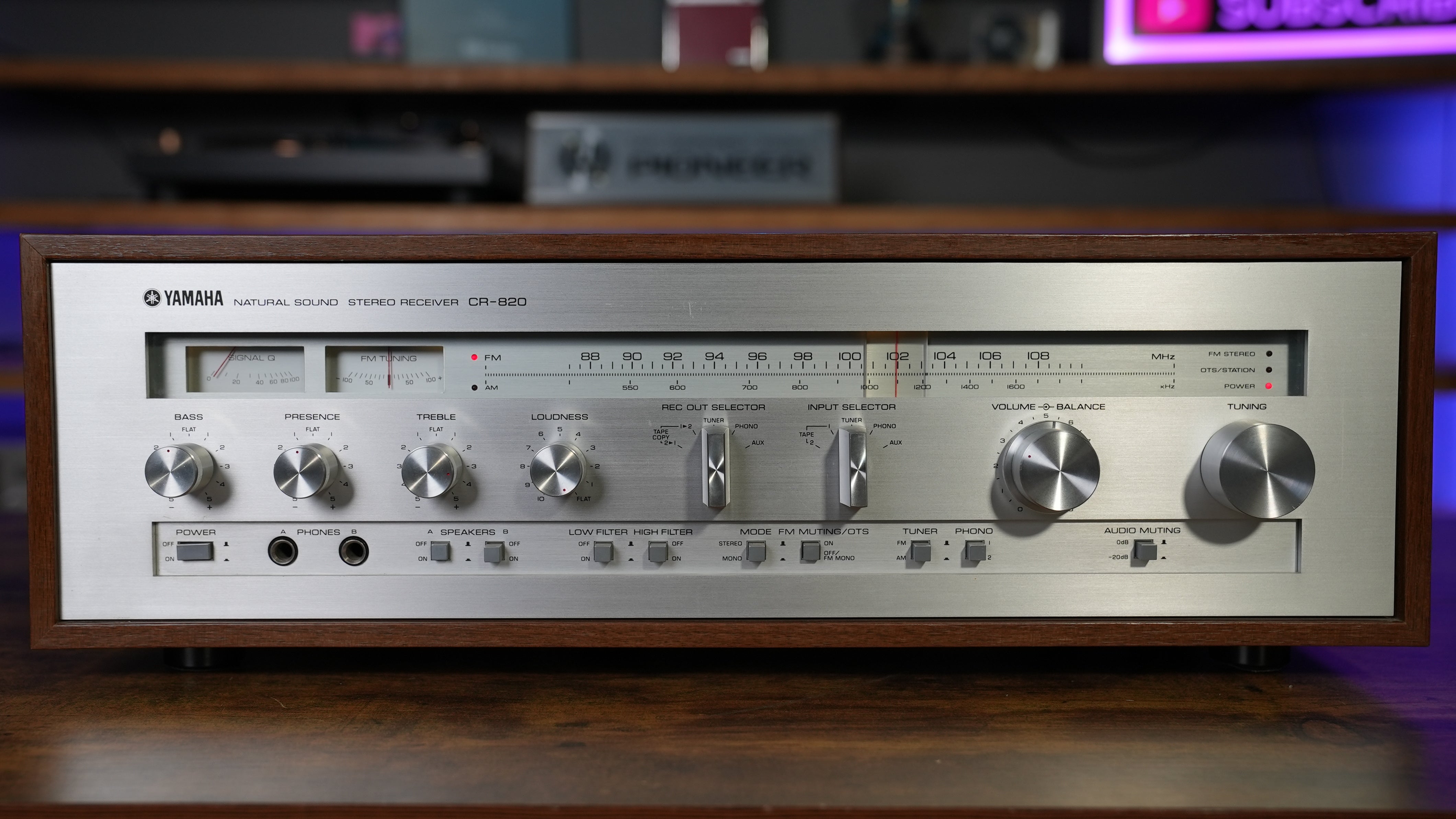

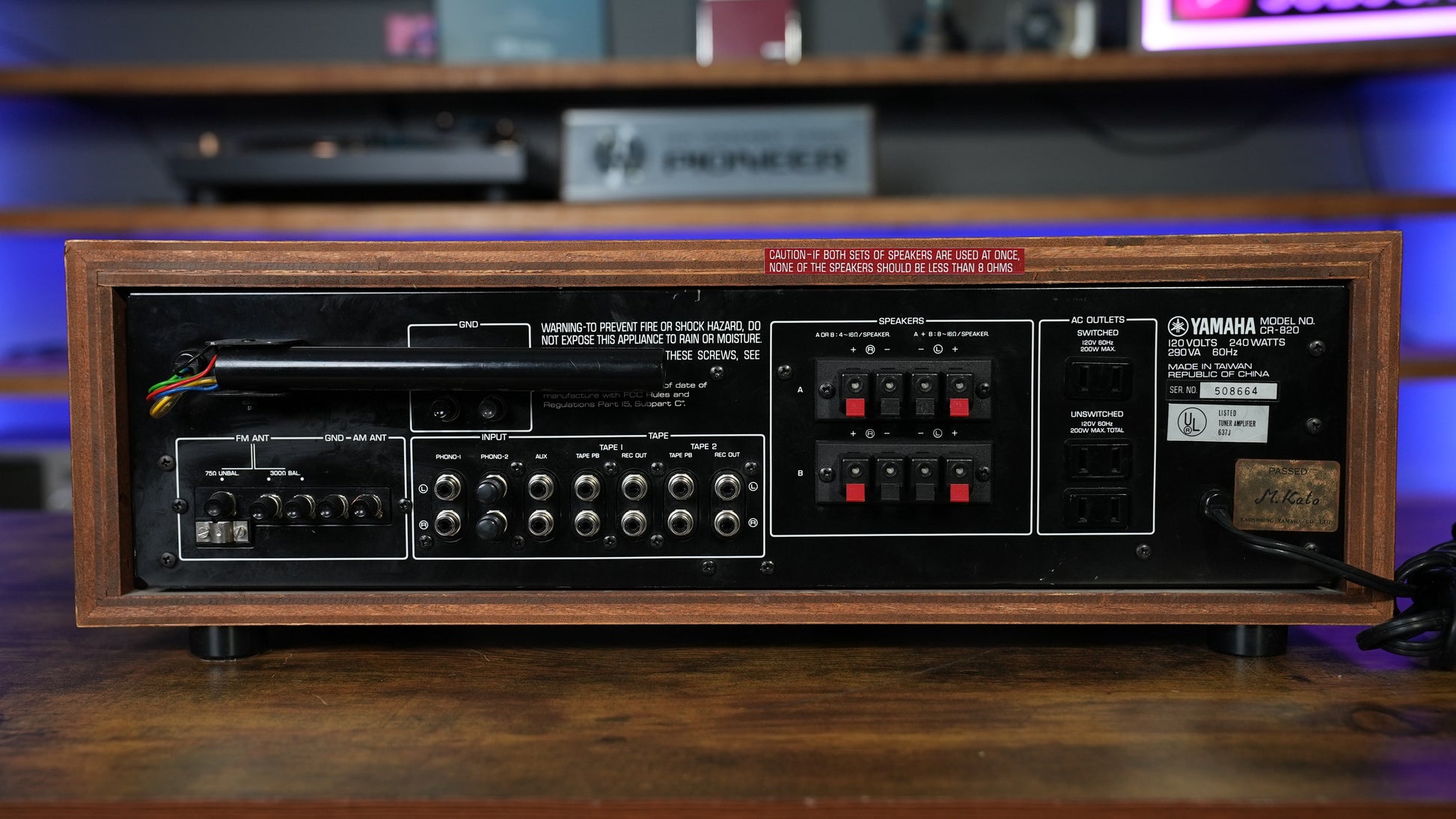

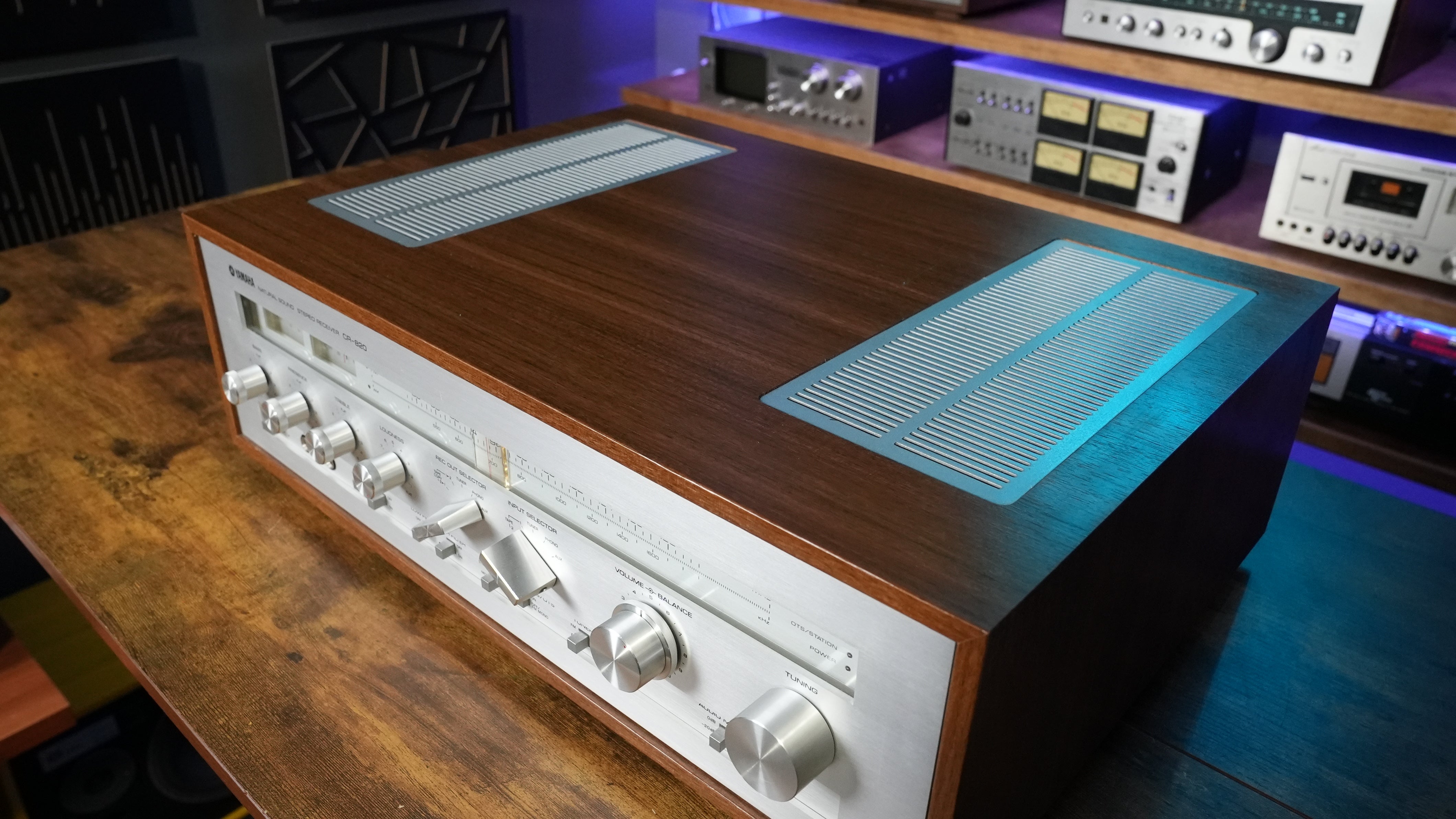

Yamaha CR-820

Call Just Audio to order! 410-882-4360

$699.00
$699.00
Just Audio HiFiPioneer X-50 Series
Pioneer X-50 Series
Rotel RX-803
Just Audio HiFiRotel RX-803
Specifications:

Tuning range: FM, MW

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.02%

Damping factor: 40

Input sensitivity: 2mV (MM), 120mV (DIN), 120mV (line)

Signal to noise ratio: 92dB (MM), 97dB (line)

Output: 120mV (line), 30mV (DIN)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 74 x transistors, 4 x IC, 1 x FET, 30 x diodes, 5 x zener diodes, 5 x LED, 4 x ceramic filters

Dimensions: 448 x 146 x 395mm

Weight: 12.2kg

Repair:

Repaired Left Channel

De-Oxed Controls

Cleaned and Serviced

#225
