By Just Audio HiFi

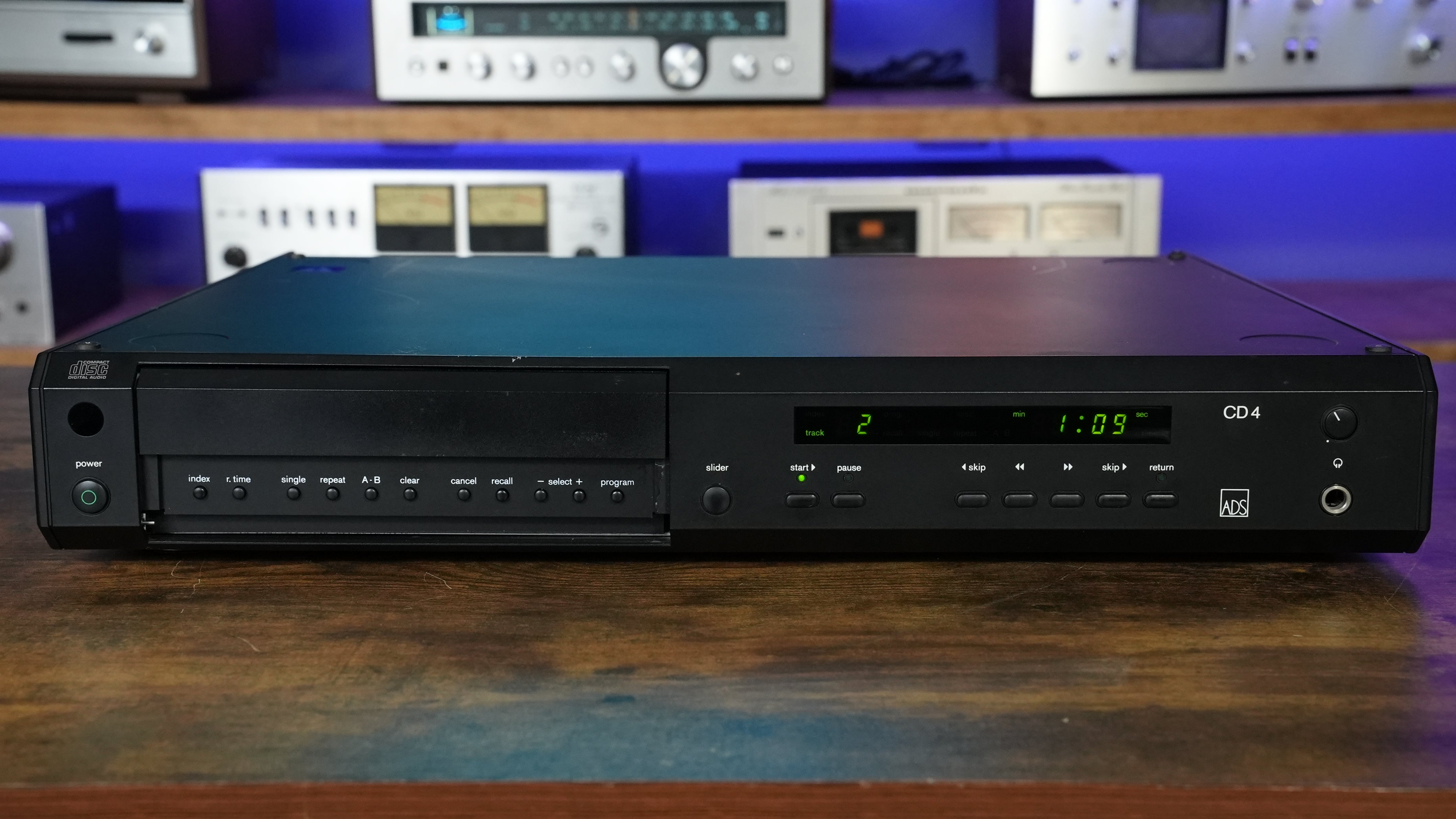

ADS CD4

Call Just Audio to order! 410-882-4360

$129.00
$129.00

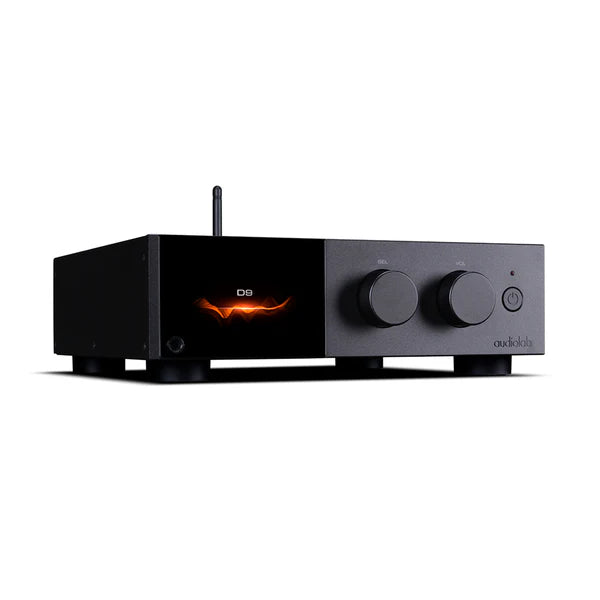

audiolabAudiolab D9
Audiolab D9
Phillips 312 *Local Pickup Only
Just Audio HiFiPhillips 312 *Local Pickup Only
Specifications:

Frequency Response: 20 Hz to 20 kHz, ± 0.25 dB.

S/N: 102 dB, A-weighted, re: 1 kHz, 0 dB.

THD: Less than 0.01%, 20 Hz to 20 kHz, at 0 dB; less than 0.1%, 20 Hz to 20 kHz, at -30 dB.

Channel Separation: Greater than 86 dB, 20 Hz to 20 kHz.

Channel Balance: Within 0.5 dB at 1 kHz, 0 dB.

Disc Fault Correction: More than 900 microns for faults in data layer; more than 800 microns for black surface spots.

Low-Pass Filter: Digital plus multi-pole analog.

Phase Shift: Less than 5°, 20 Hz to 20 kHz, between or within channels.

Output Level: Main, 2.0 V rms at 1 kHz, 0 dB; headphone, 0 to 2.0 V rms into 30 ohms.

Dimensions: 17 1/2 in. W x 2 3/4 in. H x 14 13/16 in. D (44.5 cm x 7.0 cm x 37.6 cm).

Weight: 20 lbs. (9 kg).

Repair:

Changed Belt

Cleaned and Tested
