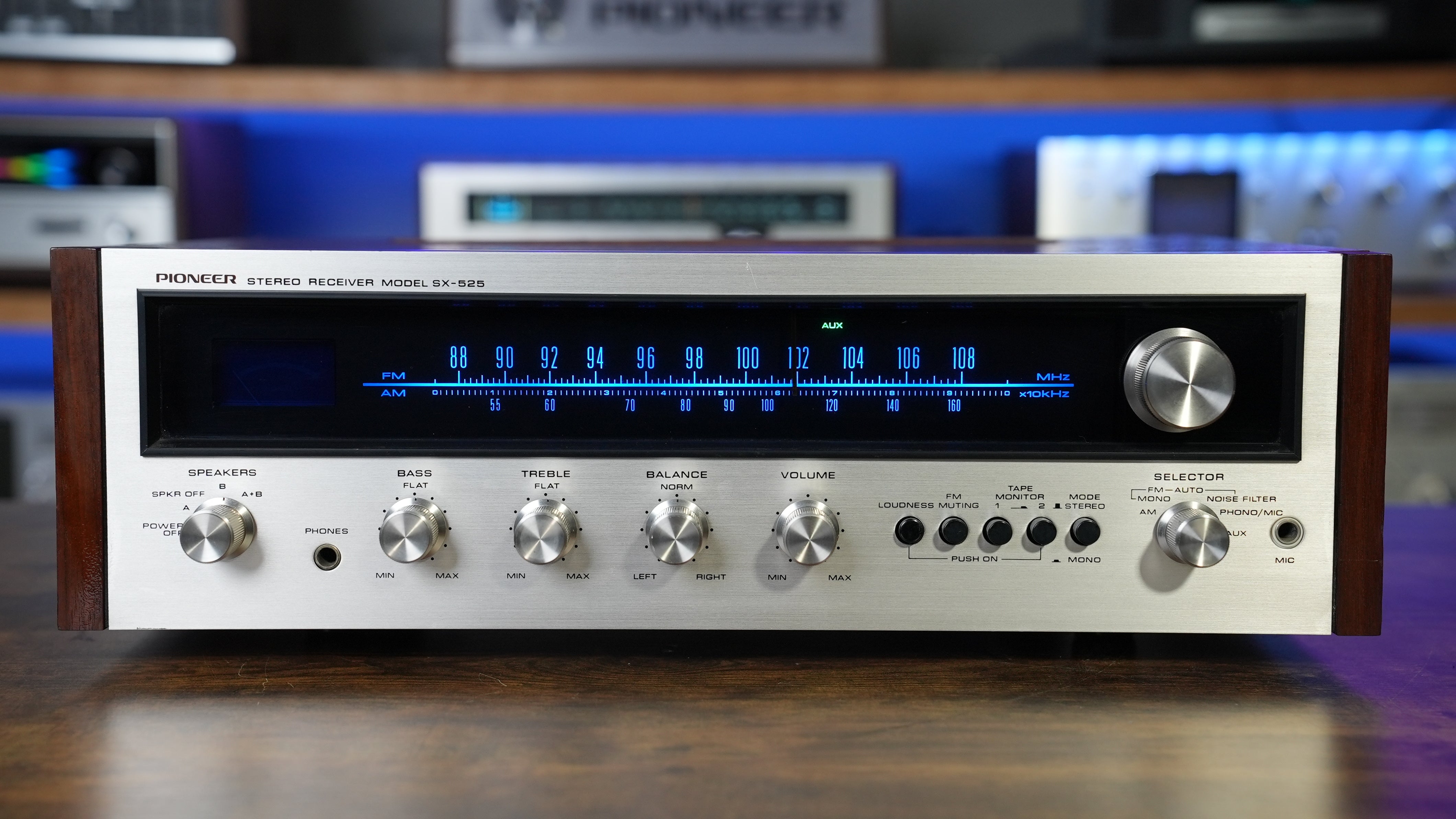

Pioneer SX-525

Call Just Audio to order! 410-882-4360

$399.00
$399.00
Just Audio HiFiOnkyo TX-6000
Onkyo TX-6000 - Just Audio HiFi
Yamaha R-1000 - Just Audio HiFi
Just Audio HiFiYamaha R-1000
Specifications:

Tuning range: FM, MW

Power output: 13 watts per channel into 8Ω (stereo)

Frequency response: 15Hz to 30kHz

Total harmonic distortion: 1%

Damping factor: 40

Input sensitivity: 6mV (mic), 2.7mV (MM), 200mV (DIN), 200mV (line)

Signal to noise ratio: 75dB (MM), 85dB (line)

Output: 200mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 1 x FET, 2 x IC, 33 x transistors, 29 x diodes

Dimensions: 450 x 145 x 360mm

Weight: 8kg

Accessories: FM T-type antenna

Repair:

25 Replacement Capacitors

Soldered Circuit Boards

Cleaned Controls

Clean Switches
