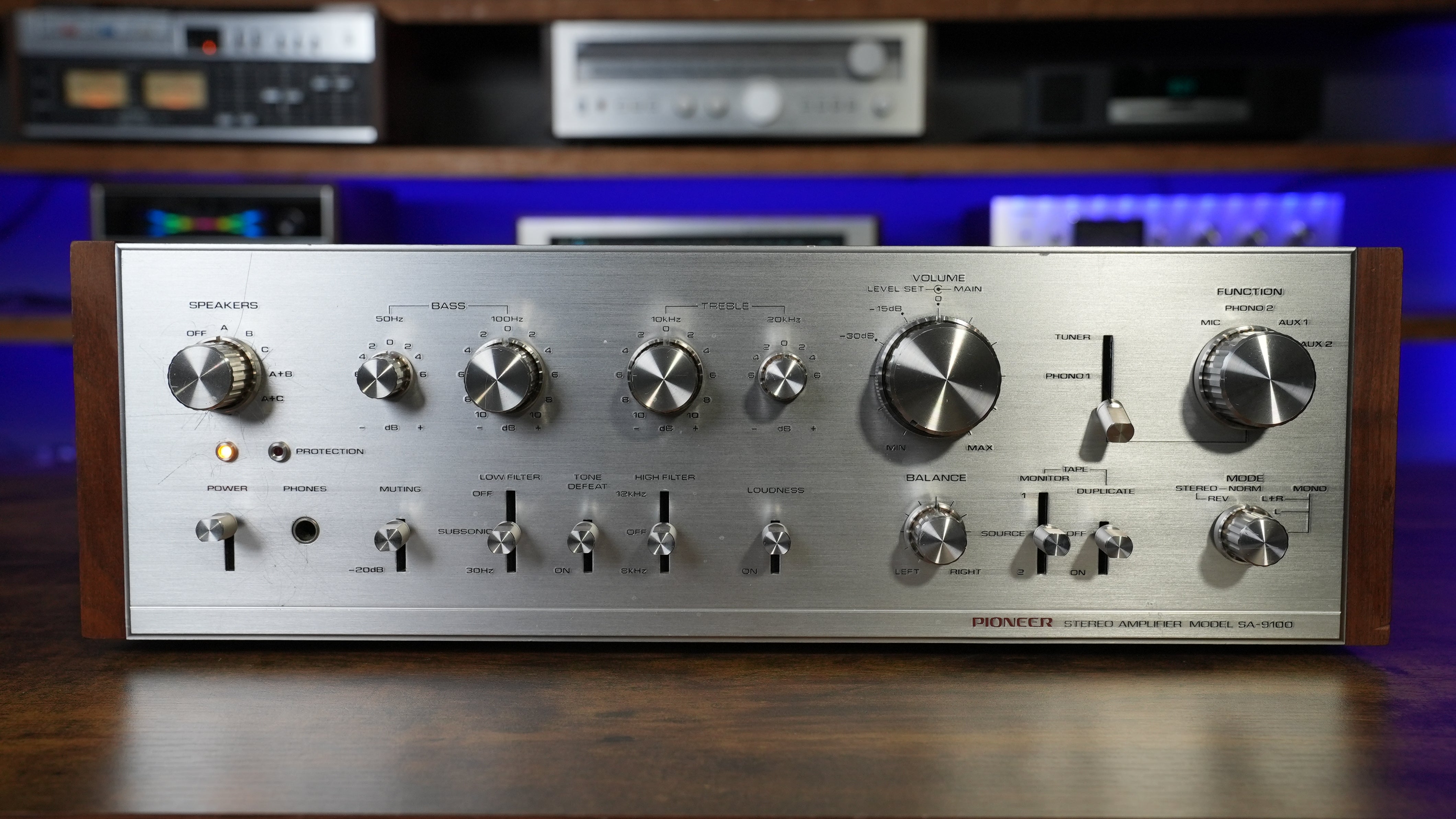

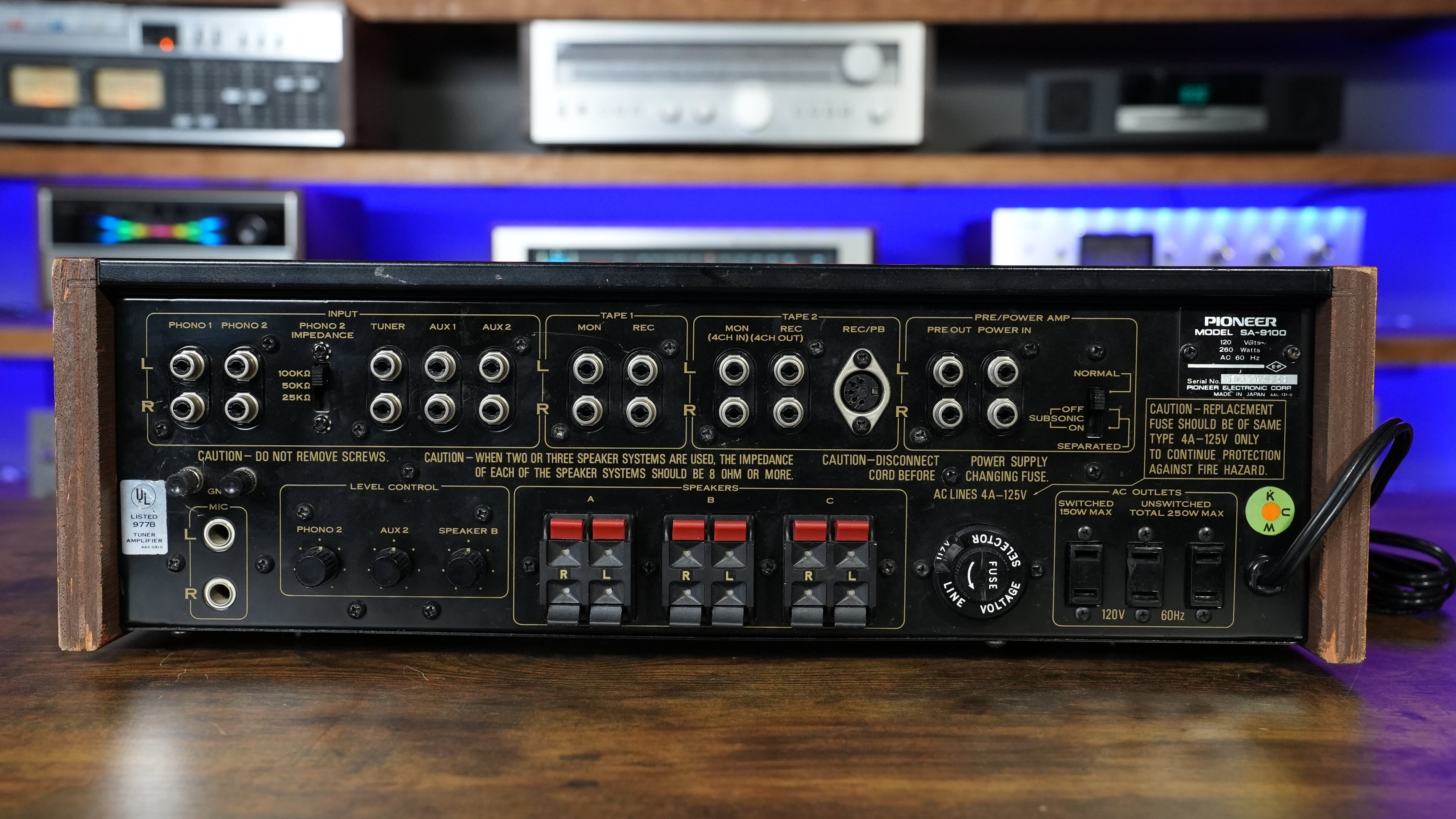

Pioneer SA-9100

Call Just Audio to order! 410-882-4360

$1,599.00
$1,599.00
Just Audio HiFiPioneer SA-8100
Pioneer SA-8100
Yamaha CA-810 - Just Audio HiFi
Just Audio HiFiYamaha CA-810
Specifications:

Power output: 60 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 70kHz

Total harmonic distortion: 0.1%

Damping factor: 70

Input sensitivity: 2mV (mic), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 70dB (mic), 80dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN), 2V (Pre out)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 63 x transistors, 30 x diodes

Dimensions: 430 x 138 x 341mm

Weight: 13.6kg

Repair:

LED Upgrade

EQ Amp Rebuilt

Control Amp Rebuilt

Filter Amp Rebuilt

Power Amp Rebuilt

Protection Circuit Rebuilt

Power Supply - A Rebuilt

Power Supply - B Rebuilt

Switch C Rebuilt

Speaker Switch and Knobs Replaced

Bias Adjusted

Cleaned and Tested
